How to Read Floor Plans, Step by Step

by Keith Owens | Jul 27, 2026 | Construction Drawing Guides

Connecting rooms, walls, doors and dimensions on the plan to the space itself

Last updated:

Quick answer: A floor plan is a scaled, top-down view of one level, drawn as if the building were sliced horizontally about four feet above the floor. It shows the layout of rooms, walls, doors, windows, and fixtures, with dimensions and labels giving sizes and uses.

Key takeaways:

  • A floor plan is a horizontal slice of the building seen from above.
  • Walls, openings, and fixtures are drawn to scale with dimensions.
  • Room labels, symbols, and notes explain function and finishes.


Of all the drawings in a construction set, the floor plan is the one people read most. It is the map of a building — a view from directly above that shows how rooms, walls, doors, and windows fit together. Learning to read a floor plan step by step gives you a practical grasp of a building’s layout and is the natural starting point for understanding any set of construction documents. This guide walks through exactly how to read a floor plan, from orienting yourself to interpreting the details.

Whether you are planning a renovation, buying a property, or learning the trade, the floor plan is where a building’s design becomes clear.

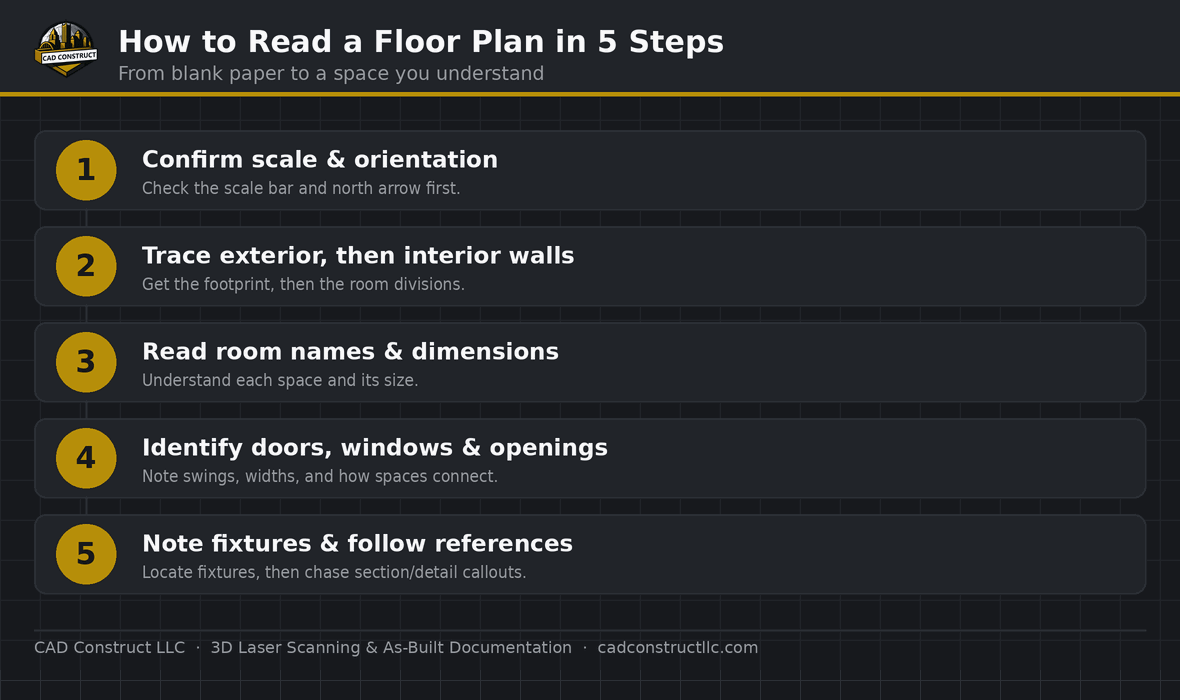

The six steps, in order:

  1. Read the title block and orientation
  2. Identify the walls and overall shape
  3. Locate doors and windows
  4. Read the room labels and dimensions
  5. Interpret fixtures and built-ins
  6. Follow the references

What a floor plan shows

A floor plan is a horizontal slice through a building, drawn as if the structure were cut about four feet above the floor and you were looking straight down. That cut height is chosen so the drawing captures doors, windows, and countertops while showing the walls in section. The result is a top-down map of a single level, showing the shape and size of every room, the location of walls and openings, and the placement of fixtures and built-in elements.

Each floor of a building has its own plan, so a two-story house has a first-floor plan and a second-floor plan, sometimes plus a basement and roof plan. Reading them together tells the full story of how the building is arranged.

Step 1: Read the title block and orientation

Before studying the layout, read the title block to confirm which floor you are looking at and the drawing’s scale. Then find the north arrow, usually placed near a corner of the sheet, which tells you the building’s orientation. Knowing which way is north helps you understand sun exposure, views, and how the plan relates to the site. Establishing what floor, what scale, and which direction is north takes only a moment and grounds everything that follows.

Step 2: Identify the walls and overall shape

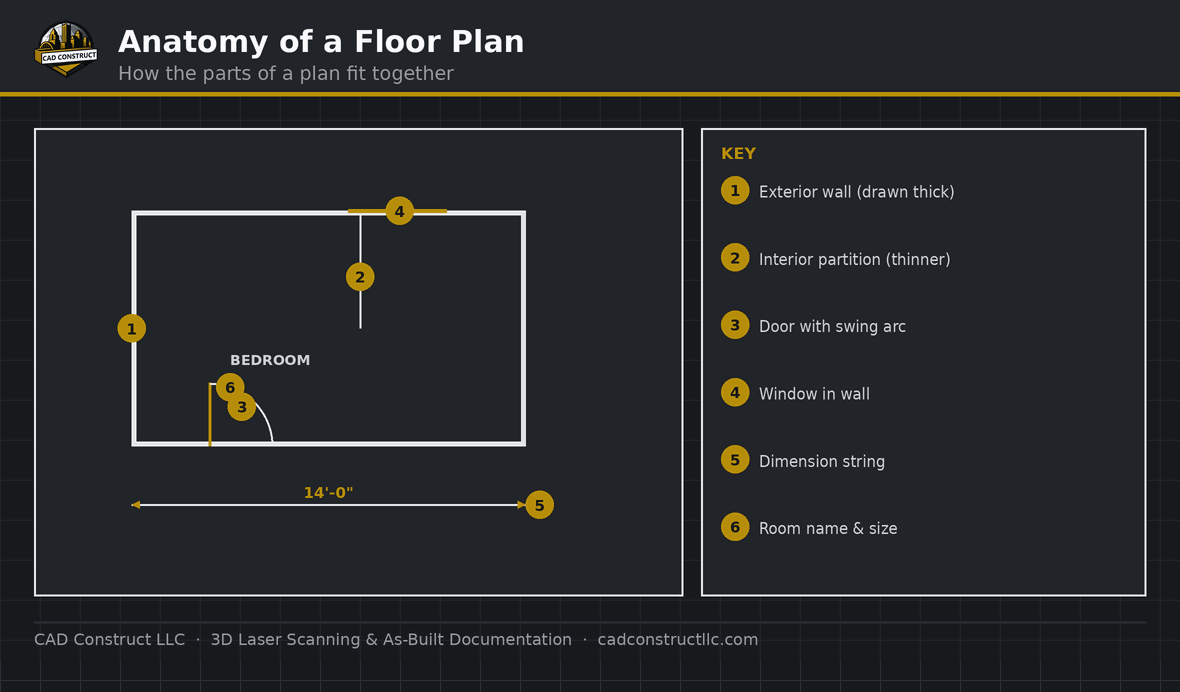

Start by tracing the exterior walls to grasp the building’s overall footprint and shape. Exterior walls are typically drawn thicker than interior partitions. Then follow the interior walls that divide the space into rooms. Walls are shown as parallel lines, and their thickness can indicate whether they are structural, plumbing, or standard partitions. Getting the overall shape and the room divisions clear in your mind gives you the framework for reading everything else.

Step 3: Locate doors and windows

Next, find the doors and windows. Doors are shown as a gap in the wall with a line for the door leaf and an arc showing the swing direction — which way the door opens and into which room. Windows appear as breaks in the wall with thin parallel lines representing the glass. Noting the doors tells you how people move through the space, and the windows show where light and views enter. Together they reveal the circulation and feel of the layout.

Reading a floor plan, step by stepSix passes that turn lines into a layout
  1. Read the title block and orientationWhat sheet you are on, at what scale, and which way is north. Orientation first, before you start interpreting anything on the page.
  2. Identify walls and overall shapeTrace the outline and the internal divisions to get the footprint and room arrangement before worrying about detail.
  3. Locate doors and windowsDoors are a gap in the wall with a leaf line and a swing arc; windows are breaks with thin parallel lines. Together they reveal circulation and light.
  4. Read room labels and dimensionsNames and written dimensions tell you what each space is and how big. Written figures beat measuring off the page.
  5. Interpret fixtures and built-insStandardized symbols for sinks, toilets, tubs, ranges, refrigerators, cabinets, closets, stairs and fireplaces show how each room actually functions.
  6. Follow the referencesCallouts point to sections and details on other sheets that answer what the plan alone cannot.
CAD Construct LLCAs-Built Documentation & CADPittsburgh, PAcadconstructllc.com

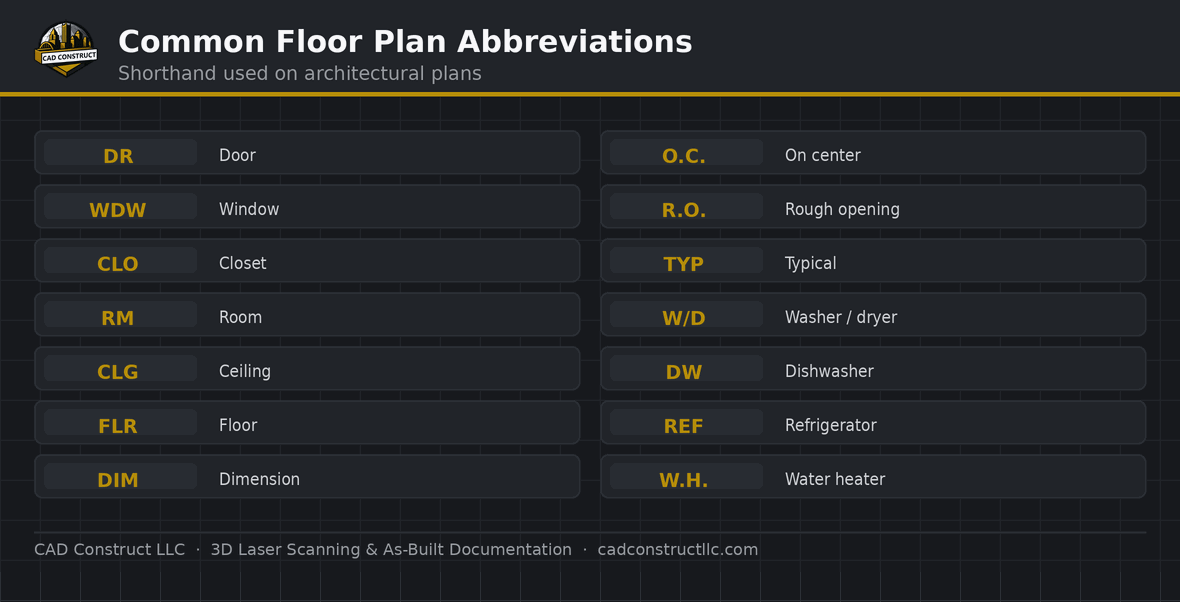

Step 4: Read the room labels and dimensions

Floor plans label each room with its name and often its dimensions or area. Dimensions are shown as lines with measurements, running along walls and between features to give exact sizes and locations. Reading the dimension strings — the chains of measurements along an exterior wall, for instance — lets you understand the real size of every space. Where a dimension is not labeled, you can determine it using the drawing’s scale, but most important sizes are called out directly.

Oliver Building first floor plan

Step 5: Interpret fixtures and built-ins

Floor plans show fixtures and built-in elements with standardized symbols: sinks, toilets, tubs, and showers in bathrooms; ranges, refrigerators, and cabinets in kitchens; closets, stairs, and fireplaces throughout. These symbols tell you how each room functions. Stairs are shown as a series of parallel lines with an arrow indicating the direction up, and a note may indicate how many risers connect the floors. Reading these details turns the plan from a set of empty boxes into a fully understood, functional space.

Step 6: Follow the references

Floor plans are connected to the rest of the set through reference symbols. Section markers show where vertical slices are cut and point to the section drawings. Detail callouts direct you to enlarged drawings of specific conditions. Elevation references indicate where interior elevations are taken. Following these references lets you move from the plan to the drawings that explain height, construction, and detail — reading the set as the interconnected whole it is meant to be.

What the symbols are telling youThe conventions that carry the most meaning

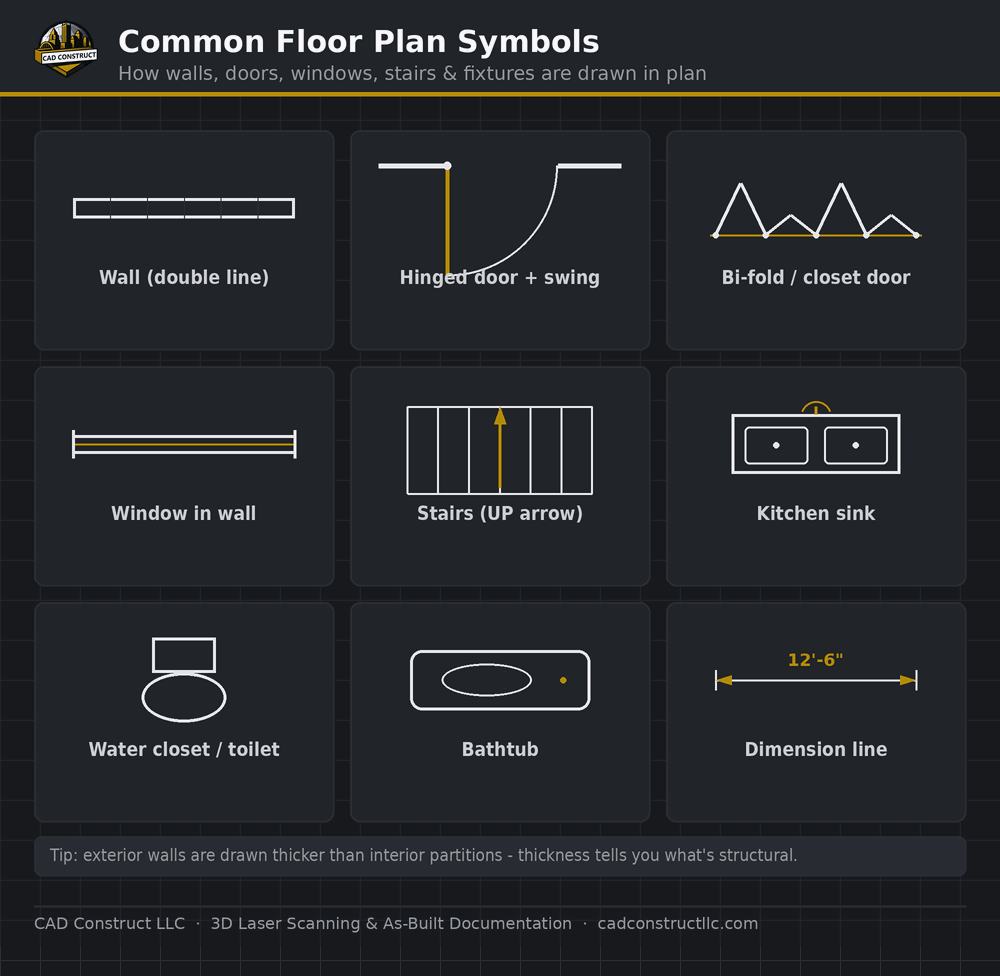

  • Door swing arcsThe arc shows which way a door opens and into which room — information that decides furniture layout, clearances and accessibility.
  • Window breaksThin parallel lines within a wall break represent glazing, showing where daylight and views enter the space.
  • Stair direction arrowsA series of parallel lines with an arrow indicating the way up, often with a note giving the number of risers between floors.
  • Fixture symbolsStandardized marks for sanitaryware, kitchen appliances and cabinetry, which is how a plan communicates a room's function without labeling every item.
CAD Construct LLCAs-Built Documentation & CADPittsburgh, PAcadconstructllc.com

Putting it together

Reading a floor plan well is simply doing these steps in order: confirm the floor, scale, and orientation; trace the walls and overall shape; locate doors and windows; read the room labels and dimensions; interpret the fixtures; and follow the references. With practice, you will do much of this at a glance, absorbing a building’s layout the moment you look at its plan. And when a building’s existing floor plan is missing or no longer accurate, 3D laser scanning and as-built documentation can produce a precise, current floor plan you can trust.

Oliver Building typical floor plan


Related work: See real 2D drawings and CAD deliverables in our CAD portfolio.

Frequently asked questions

Why is the floor plan drawn from above?

A top-down view is the clearest way to show a room layout — the size, shape, and arrangement of spaces, and the location of walls, doors, and windows. It is the most intuitive way to understand how a building is organized on each level.

Why a plan looks the way it doesThe horizontal slice that defines the drawing
  1. The building is cut horizontallyA floor plan is drawn as though the building were sliced through about four feet above the floor.
  2. You look down at the cutThe view is top-down onto that slice, which is why walls read as solid lines.
  3. What the cut passes through is drawn solidWalls, columns and anything intersected by the slice appear cut.
  4. What sits below the cut is drawn in planFixtures, cabinets and stairs below the slice line are shown in plan view.
Heights, ceilings and vertical relationships are not on the plan — that is what sections and elevations are for.
CAD Construct LLCAs-Built Documentation & CADPittsburgh, PAcadconstructllc.com

How do I know which way a door opens?

The arc drawn with the door symbol shows the swing. The straight line is the door leaf, and the arc traces the path it follows as it opens, telling you both the direction and the room it opens into.

What if a dimension is not labeled?

You can determine an unlabeled size using the drawing’s stated scale and a scale ruler, though most important dimensions are labeled directly on the plan so you rarely need to measure.

The floor plan is the map of a building, and reading it is a step-by-step skill anyone can learn. Orient yourself, trace the walls, find the openings, read the dimensions and fixtures, and follow the references — and any floor plan becomes a clear picture of how a building is arranged.

Can I get a floor plan of a building that has no drawings?

Yes. When original drawings are lost or a building has been modified over the years, a measured survey can produce an accurate current floor plan. Laser scanning captures the space precisely, and the resulting as-built plan reflects the building exactly as it exists today rather than as it may once have been designed.

What a plan shows vs. what it cannotKnowing when to reach for another drawing
The floor plan answers
  • Room layout and overall footprint
  • How spaces connect and how people circulate
  • Door swings and window positions
  • Room names and horizontal dimensions
  • Fixture and built-in locations
You need another drawing for
  • Ceiling heights and vertical dimensions
  • How the building stacks between levels
  • What a wall is actually made of
  • Elevational appearance and finishes
  • Anything the callouts reference on other sheets
CAD Construct LLCAs-Built Documentation & CADPittsburgh, PAcadconstructllc.com

What does a floor plan show?

The arrangement of rooms, walls, doors, windows, stairs, and fixed elements on one level, drawn to scale as seen from above.

At what height is a floor plan cut?

Conventionally about four feet above the floor, so doors, windows, and counters appear while taller elements above are shown dashed.

How do I find a room’s dimensions on a plan?

Read the dimension strings along the walls or the noted room sizes, and use the drawing scale only as a backup.

The facts behind the drawingWhat the conventions fix
  • ~4 ftHeight above floor level at which a plan is conventionally cut, which is why doors and windows appear
  • 6Passes worth making over a plan, from title block and orientation through to following the references
  • 1Level shown per plan — each story gets its own sheet
  • 2Ways to get a dimension: read the written figure, or scale it. The written figure is the reliable one
For an existing building with no reliable plan, a laser scan produces one from measured reality. The as-built cost calculator estimates a range from your own project.
CAD Construct LLCAs-Built Documentation & CADPittsburgh, PAcadconstructllc.com

What do the small arcs at doors mean?

They show the door swing — which way the door opens and the path it travels.

How are stairs shown on a floor plan?

As a series of parallel lines representing treads, with an arrow indicating whether they go up or down from that level.

What counts as a fixture on a floor plan?

A permanently installed item such as a sink, toilet, tub, or built-in cabinet, each drawn with a standard symbol.
